COM-1016 Bit Interleaver / Deinterleaver

KEY FEATURES

Interleaves any digital signal with an n*8-bit frame size

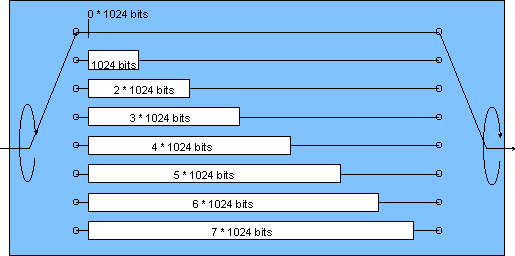

• 8 branches, 1024 depth increment
• Total delay: 57,344 bits

Unique word insertion / detection for synchronization

Maximum throughput: 20 Mbps

Can be used as interleaver (-A) or deinterleaver (-B)

Connectorized 3”x 3” module for ease of prototyping. Standard 40 pin 2mm dual row connectors (left, right, bottom). Single 5V Supply. Interfaces with 5V and 3.3V logic

ComBlock COMPATIBILITY LIST

Input	Output
COM-1009 Viterbi Decoder	COM-1010 Convolutional Encoder
COM-1006 Reed-Solomon Encoder
COM-7001 Turbo Code Encoder	COM-7001 Turbo Code Decoder
COM-1001 BPSK/QPSK/OQPSK Demodulator	COM-1001 BPSK/QPSK/OQPSK Modulator
COM-1011/1018 DSSS Demodulator	COM-1012/1019 DSSS Modulator
