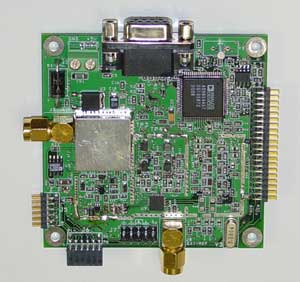

COM-3004 [20 - 90 MHz] Receiver

KEY FEATURES

[20-90 MHz] receiver

Sensitivity: -64 dBm RF input for full scale 10-bit output samples

Built-in RF AGC, 40 dB dynamic range

Extremely low-phase noise frequency synthesizer can be tuned over entire range by steps of 0.04Hz

8 preset frequencies for fast (<2ms) local oscillator frequency tuning

Selectable internal / external 10 MHz frequency reference for the frequency synthesizer

Dual 10-bit Analog-to-Digital converters, 40 Msamples/s

Selectable internal 40 MHz / external ADC sampling clock (to synchronize multiple receivers)

Three baseband filtering options:

• 280 KHz passband
• 3 MHz passband
• 12 MHz passband

SMA connectors. Single 5V supply. Connectorized 3”x 3” module for ease of prototyping

ComBlock COMPATIBILITY LIST

Input	Output
COM-4004 [0-80 MHz] IF modulator, in back-to-back mode with attenuators	COM-1008 Variable decimation
	COM-1001 BPSK/QPSK/OQPSK demodulator
	COM-1011/1018 Direct-sequence spread-spectrum demodulator
	COM-1027 FSK/MSK/GFSK/GMSK demodulator
	COM-8002 High-speed data acquisition
	COM-2001 Dual D/A converter (baseband)
