FPGA Development Platform
  • Higher-performance newer-generation modules are now available: COM-1500/1800/1900
  • Develop custom signal processing applications on FPGA using this generic development platform
  • Xilinx Spartan-II XC2S200 FPGA features 200,000 system gates, including 57Kbit of dual port memory
  • Free VHDL development tools available from Xilinx (WebPACK ISE)
  • Modules can be stacked for larger designs development
  • FPGA configuration remains in non-volatile flash memory and is automatically reloaded at power up
  • User-friendly utilities for remote monitoring and control over simple serial link. This includes loading FPGA configuration file (.mcs) into flash
  • This module is interface compatible with other pre-programmed ComBlock modules
  • 40 MHz internal clock rate. External clock selection
  • Single 5V supply with reverse voltage and overvoltage protection. Connectorized 3”x3” module for ease of prototyping. Standard 40 pin 2mm dual row connectors (left, right, bottom). Interfaces with 5V and 3.3V logic

  • ComScope–enabled: key internal signals can be captured in real-time and displayed on a host computer

  • See Also the COM-1400 for larger FPGA, USB 2.0, gain control DAC

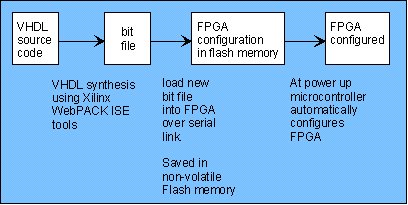

  • Development Environment

    Input Output
    Most ComBlocks Most ComBlocks


    (82 KB)
    Download VHDL Code Templates
    Getting Started with VHDL Development
