LAN / TCP-IP Network Interface

KEY FEATURES

A higher-performance newer-generation module is available: COM-5003

Provides high-speed network interface for data transfer and monitoring & control of ComBlock assemblies

Standard 10baseT LAN interface, RJ-45 connector

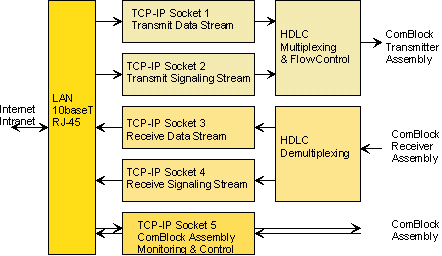

Support for multiple data streams, with a standard TCP-IP socket for each stream

HDLC multiplexing of two transmit streams:

• transmit data channel
• signaling channel

HDLC demultiplexing of two receive streams:

• receive data channel
• signaling channel

Elastic buffering and flow-control on each transmit and receive link

Monitoring and control of ComBlock assemblies over LAN or serial link from a graphical user interface

Single 5V supply. Connectorized 3”x 3” module for ease of prototyping. Standard 40 pin 2mm dual row connectors (right, bottom)

Note: the COM-5003 now provides a much higher throughput (53 Mbit/s) and extended functionality (USB)

ComBlock COMPATIBILITY LIST

Input	Output
Most ComBlock modules	Most ComBlock modules
