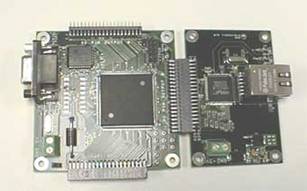

LAN / TCP-IP Network Interface

KEY FEATURES

A higher-performance newer-generation module is available: COM-5003

TCP-IP server connects ComBlock assemblies to network clients for data transfer, monitoring and control

Standard 100Base-Tx/10Base-T, RJ-45 connector. Autonegotiation or manual settings: 10/100 Mbit/s, full/half duplex

Maximum sustained throughput:

• 25 Mbits/s (100Base-Tx)
• 5.3 Mbits/s (10Base-T)
• Actual speed depends on host computer

Elastic buffering and flow-control on each transmit and receive link

Monitoring and control of ComBlock assemblies over LAN or serial link from a graphical user interface

Single 5V supply. Standard 40 pin 2mm dual row connectors (right, bottom)

Note: the COM-5003 now provides a much higher throughput (53 Mbit/s) and extended functionality (HDLC, USB)

ComBlock COMPATIBILITY LIST

Input	Output
COM-8002 High-speed data acquisition	COM-8001 Arbitrary Waveform Generator
