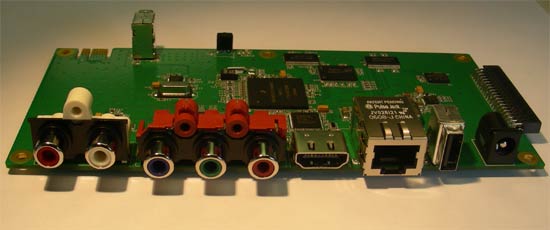

Linux Internet TV Set-Top Box Development Platform

KEY FEATURES

This Linux on ARM11 platform is optimized to facilitate the development of new Internet TV streaming applications while avoiding the drudgery of designing hardware and low-level drivers

The hardware supports multiple TV interfaces:

• Digital / HDMI (A/V)
• Analog Component / Composite Video

Extensive Network connectivity and user interfaces:

• RJ-45 10/100 LAN
• 2 USB OTG/2.0 for external memory stick and WiFi
• IR receiver for remote control

A comprehensive and familiar (standard) development environment is supplied with the board so that software designers can start high-level customization immediately while minimizing low-level hardware interaction.

• Preloaded with Linux
• Key hardware drivers included

Small board dimensions : 6" x 3"

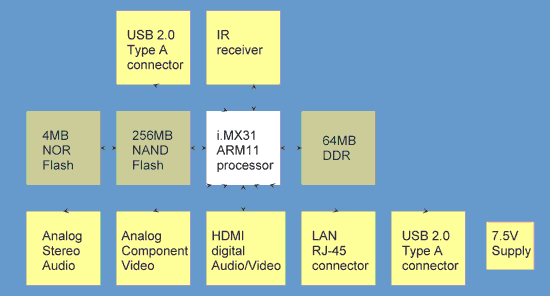

Hardware summary:

• Freescale i.MX31 (ARM11) processor @532MHz
• 64MB DDR memory
• 256MB NAND flash memory
• 4MB NOR flash memory

ComBlock COMPATIBILITY LIST

*not an exhaustive list
Input
COM-1400 FPGA development platform, Xilinx Spartan3-400 & USB2.0
COM-1200FPGA development platform, Xilinx Spartan3-2000, Tx/Rx analog front-end & USB 2.0
