Dual-Band 915MHz / 2.4GHz Receiver

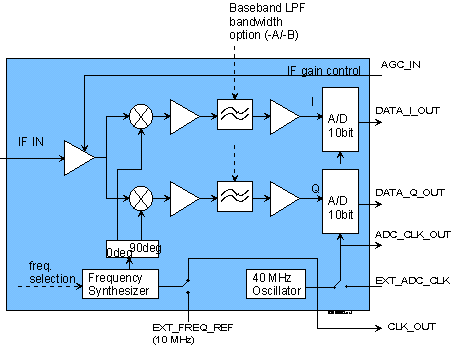

KEY FEATURES

Dual-band, [902-928 MHz] and [2.025 - 2.5 GHz] receiver, software selectable. Designed for use in unlicensed bands and satellite digital audio radio service (SDARS)

Sensitivity: -56 dBm RF input for full scale 10-bit output samples

Built-in RF AGC, 70 dB dynamic range

Low phase-noise frequency synthesizer can be tuned over entire range by steps of 100, 31.25 or 25 KHz

8 preset frequencies for fast (<2ms) local oscillator frequency tuning

Selectable internal / external 10 MHz frequency reference for the frequency synthesizer

Dual 10-bit Analog-to-Digital converters, 40 Msamples/s

Selectable internal 40 MHz / external ADC sampling clock (to synchronize multiple receivers)

Two baseband filtering options:

• Narrow-band applications (<300 KHz)
• Wideband applications (<26 MHz)

SMA connectors. Single 5V supply. Connectorized 3”x 3” module for ease of prototyping

ComBlock COMPATIBILITY LIST

Input	Output
COM-4102 2.4 GHz transceiver, 25 dBm power / 3.5 dB noise figure	COM-1008 Variable decimation
	COM-1001 BPSK/QPSK/OQPSK demodulator
	COM-1011/1018 Direct-sequence spread-spectrum demodulator
	COM-1027 FSK/MSK/GFSK/GMSK demodulator
	COM-8002 High-speed data acquisition
	COM-2001 Dual D/A converter (baseband)
